| Two solutions in a single capture card. | |||

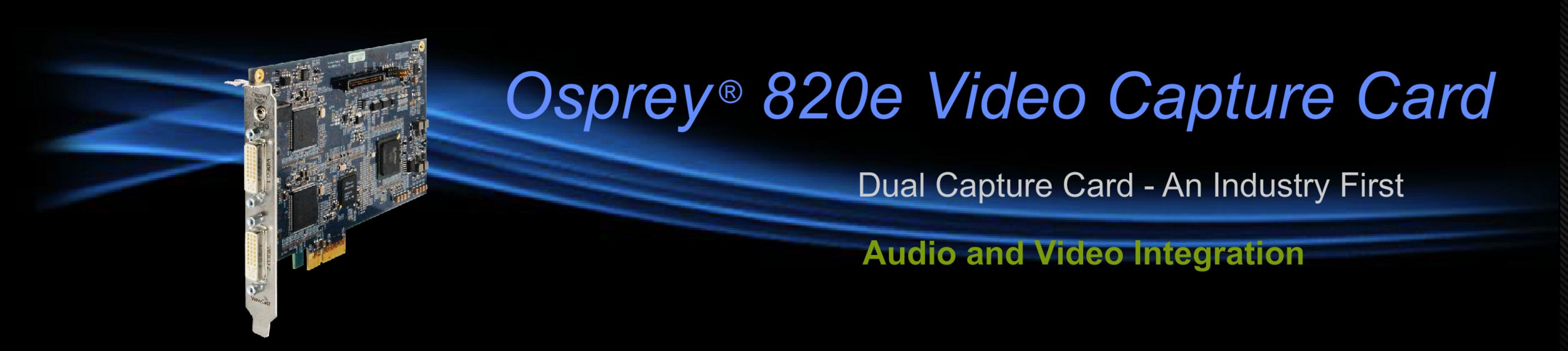

The Osprey 820e continues the strong tradition of high-quality streaming performance. The latest video capture card now lets you add audio and video to a traditional graphics interface making it an ideal solution for lecture capture. This dual input card can ingest SD or HD analog video as well as VGA HDMI and DVI. |
|||
| Optimized for live streaming. | |||
Take advantage of advanced video pre-processing features such as logo/bitmap overlay with transparency and positioning controls, de-interlacing, color space conversion and closed-caption extraction and rendering. Wide screen signaling is also standard. |
|||
Multiple Streams. |
|||
| The Osprey 820e also comes standard with SimulStream®. This driver enhancement provides the ability to feed multiple encoding applications at the same time. | |||
| Supported Digital Modes | Supported Analog Modes | ||
1920 x 1080/60/p 1920 x 1080/59.94/p 1920 x 1080/50/p 1920 x 1080/60/i 1920 x 1080/59.94/i 1920 x 1080/50/i 1920 x 1080/30/p 1920 x 1080/29.97/p 1920 x 1080/25/p 1920 x 1080/24/p 1920 x 1080/23.98/p 1600 x 1200/60 1440 x 900/85 1440 x 900/60 1400 x 1050/85 1400 x 1050/60 1360 x 768/60 |
1280 x 1024/85 1280 x 1024/60 1280 x 960/85 1280 x 960/60 1280 x 800/60 1280 x 768/85 1280 x 768/60 1280 x 720/60 1280 x 720/59.94 1280 x 720/50 1024 x 768/85 1024 x 765/60 800 x 600/60 640 x 480/85 640 x 480/75 640 x 480/60 |
1920 x 1080/60 1920 x 1080/59.94 1920 X 1080/50 1920 x 1080/25 1920 x 1080/24 1920 x 1080/23.98 1600 x 1200/60 1440 x 900/75 1400 x 1050/75 1400 x 1050/60 1360 x 768/60 1280 x 1024/85 1280 x 1024/60 |
1280 x 960/85 1280 x 960/60 1280 x 800/60 1280 x 768/85 1280 x 768/75 1280 x 720/60 1280 x 720/50 1024 x 768/85 1024 x 768/60 800 x 600/85 640 x 480/85 640 x 480/60 |
| HDCP not supported. | |||
