| Designed for multiple SDI inputs in a single device. | |

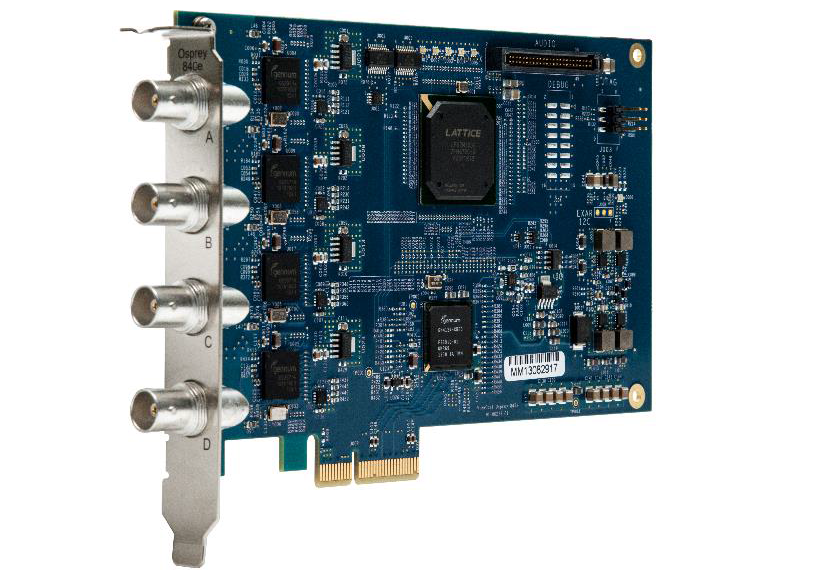

| The Osprey 840e is ideal for high-density applications with several input channels in a single device. It includes SDI support for both SD and HD as well as embedded audio in the SDI. This high-density SDI capture card has four independent SDI channels. | |
| A solution for every need. | |
| This card is designed to suit different needs. Capture up to four HD/SD or two 3G independent professional broadcast SDI video sources simultaneously. This one capture card supports:
3G SDI (424M) |
|
| Multiple Streams. | |
| The Osprey 840e also comes standard with SimulStream®. This driver enhancement provides the ability to feed multiple encoding applications at the same time. | |
| Supported Video Modes | |
1920 x 1080/60/i 1920 x 1080/59.94/i 1920 x 1080/50/i 1920 x 1080/30/p 1920 x 1080/29.97/p 1920 x 1080/25/p 1920 x 1080/24/p 1920 x 1080/23.98/p 1280 x 720/60 1280 x 720/59.94 1280 x 720/50 |
1280 x 720/30 1280 x 720/30 1280 x 720/25 1280 x 720/24 1280 x 720/23.98 720 x 480/30/i 720 x 480/29.97/i 720 x 576/25/i 720 x 576/50/p 720 x 576/25/p |
Supported modes for 3G SDI limited to two SDI inputs. 1920 x 1080/60/p 1920 x 1080/50/p 1920 x 1080/59.94/p |
|
