Overview	Specifications	Download Datastheet

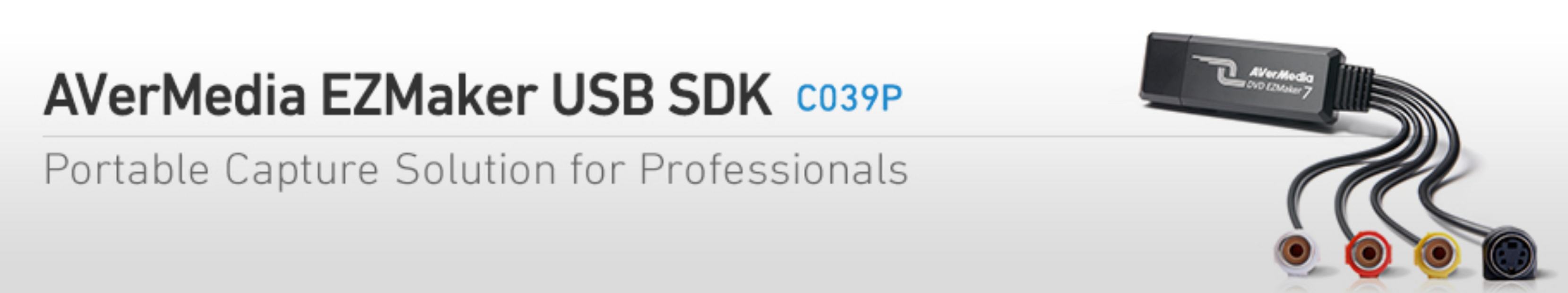

The AVerMedia EZMaker USB SDK is a USB video capture device which has S-Video and composite inputs. The accompanying software development kit provides the often-used functions to help developers or system integrators complete their task easily and efficiently. Even better, it is also compatible with major programming languages such as Visual C++, Visual Basic.

Digitize Analog Video Effortlessly

AVerMedia EZMaker USB SDK allows you to capture true color video sources and images from any analog video equipment through S-Video/Composite video inputs. Its portability makes it the best solution for mobile applications such as mobile monitoring and analysis.

Exclusive Software Development Kit (SDK)

The enclosed SDK provides a complete tool kit to develop software via various programming languages. You can utilize the API to call the appropriate functions and libraries in our SDK. It can help you to reduce noise, downscale frame rate, overlay video over the current one, adjust color, or de-interlace. Even better, it is also compatible with major programming languages like Visual C++ and Visual Basic!

High Quality API Solution

AVerMedia EZMaker USB SDK provides users a powerful set of API in DLL module for more convenient and efficient development experience. Such as capture and preview content in the video window. Users can also add customized text, date, and timestamp to the video.

Software Support:

GraphEdit

Windows Media Encoder 9

AMCap

Adobe Premiere Pro

Adobe Flash Media Live Encoder 3/li>

Corel VideoStudio

CyberLink PowerDirector

CyberLink PowerProducer

Real Producer (v13)

VLC Media Player

Sony Vegas Pro 10

Image J

Learning Valley Presentations2GO

Interface	USB 2.0
Input	Composite/ S-Video/ Audio L/R
Input Video Resolution	720x480@60i, 720x576@50i
Capture Video format	NTSC , PAL & SECAM: 8060 (NTSC only), 8872, 12896, 160120, 176144, 240180, 240176, 320240, 352240, 352288, 640240, 640288, 640480, 704576 (PAL, SECAM only), 720240, 720288, 720480, 720576 (PAL, SECAM only)
Pixel Format	NTSC: YUY2 (4:2:2), UYVY (4:2:2) PAL/SECAM: YUY2 (4:2:2), UYVY (4:2:2), Y8
Color Adjustment	Brightness, Contrast, Hue, Saturation, Sharpness
Multi-Card Support	Yes
Programming Language	VB, VC, Delphi, C#, VB.NET
SDK Framework	General DLL
Operating Environment	Temperature: 0 to 45 ℃ Humidity: 0 to 80% RHNC
Storage Environment	Temperature: -30 to 65 ℃ Humidity: 0 to 90% RHNC
Power Requirement	5V max 2.06A
Dimensions (mm)	82 (L)28.49 (W)14 (H)
System Requirement
CPU	For SD Video Capturing (AVI Format) -Intel® Pentium® 4.3.0G (HT) -AMD Athlon™ 64 3200+ -Intel® Pentium® Mobile Processor 2.0G or AMD equivalent
Memory	512 MB RAM or above
VGA	VGA card with support for DirectX9.0c or above
Sound Card	Yes
Interface	USB 2.0 Port
Operating System	Windows® 7/Vista™/XP (32/64-Bit) Linux
3rd Party S/W Support	• Telestream Wirecast • Adobe Flash Media Live Encoder 3 • UStream Producer • XSplit • Microsoft Windows Media Encoder 9 • Microsoft Express Encoder • GraphEdit • AMCap • Corel VideoStudio • CyberLink PowerDirector • CyberLink PowerProducer • Real Producer (v13) • VLC Media Player • Any application which need Direct Show compliance device
