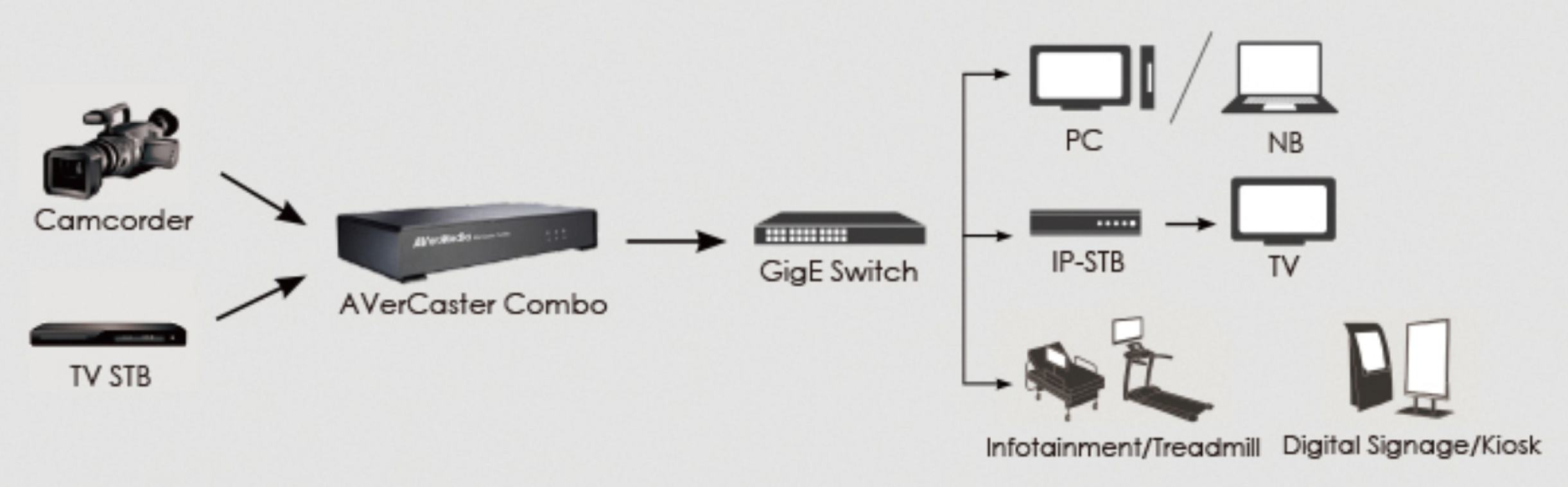

Featuring multicast over IP network, AVerCaster Combo can distribute high-definition digital TV, analog TV and various video contents to an unlimited number of users on the LAN simultaneously. And AVerCaster Combo can support various kinds of client devices, such as computer, IP-STB, kiosk, digital signage and hospital infotainment devices. In addition, this product is equipped with intuitive web-based content control interface, high video transmission quality and AVerMedia’s quality technical support, which realizes a seamless and cost-effective solution for maximum audience reach. Comparing to the traditional coaxial cable or aerial based TV/video distribution systems, it provides the most cost-effective solution for small and medium-sized enterprises. |
Multicast support for digital TV (DVB-T), analog TV and video contents to an unlimited number of client devices simultaneously over the LAN Multiple client devices support, such as computers (Windows, Mac and Linux), IP STB, kiosk, digital signage and infotainment system. Distribution of 2 different TV/video sources and even multiple digital TV programs from MPTS at the same time Intuitive web management interface for content management Easy to set up and easy to carry around Long-term multicasting with high reliability Quality technical support by AVerMedia to ensure the best practice |
Major Benefits for Enterprises |
Multicast technology decreases huge investment |
![]() |
Model | F236 (DVB-T) | F236(ATSC) | |||||||
TV System | DVB-T Analog (NTSC/PAL/SECAM) |
ATSC/ ClearQAM | |||||||
Input Signal | 75 Ω TV Antenna Composite S-Video Audio R/L |
75 Ω TV Antenna Composite S-Video Audio R/L |
|||||||
Video Format | DVB-T: MPEG2/H.264 (SD/HD) Analog TV & Input Video: MPEG2 (SD) *The audio & video quality of analog sources can be configured. (Max. bitrate is 8MB/s) |
ATSC/ ClearQAM: MPEG2 | |||||||
Transport Protocol | UDP/RTP | ||||||||
Transport Mode | Unicast/Multicast | ||||||||
IP Interface | RJ45 10/100*1 | ||||||||
System | CPU: MIPS 500MHz RAM: 64MB Memory: 8MB Flash (for firmware and configurations ) |
||||||||
Operating Environment | Temperature: 0-40°C/32-104°F Humidity: 0-80% RHNC |
||||||||
Storage Environment | Temperature: -30-60°C/-22-140°F Humidity: 0-90% RHNC |
||||||||
Power | 5V/2A: 10W Maximum | ||||||||
Weight | 843g | ||||||||
Dimensions | 230mm (L) x 124mm (W) x 42mm (H) | ||||||||
Supported Client | VLC Media Player for Windows/Linux/Mac mPlayer for Linux IP-STB (multicast MPEG2-SPTS streaming) |
